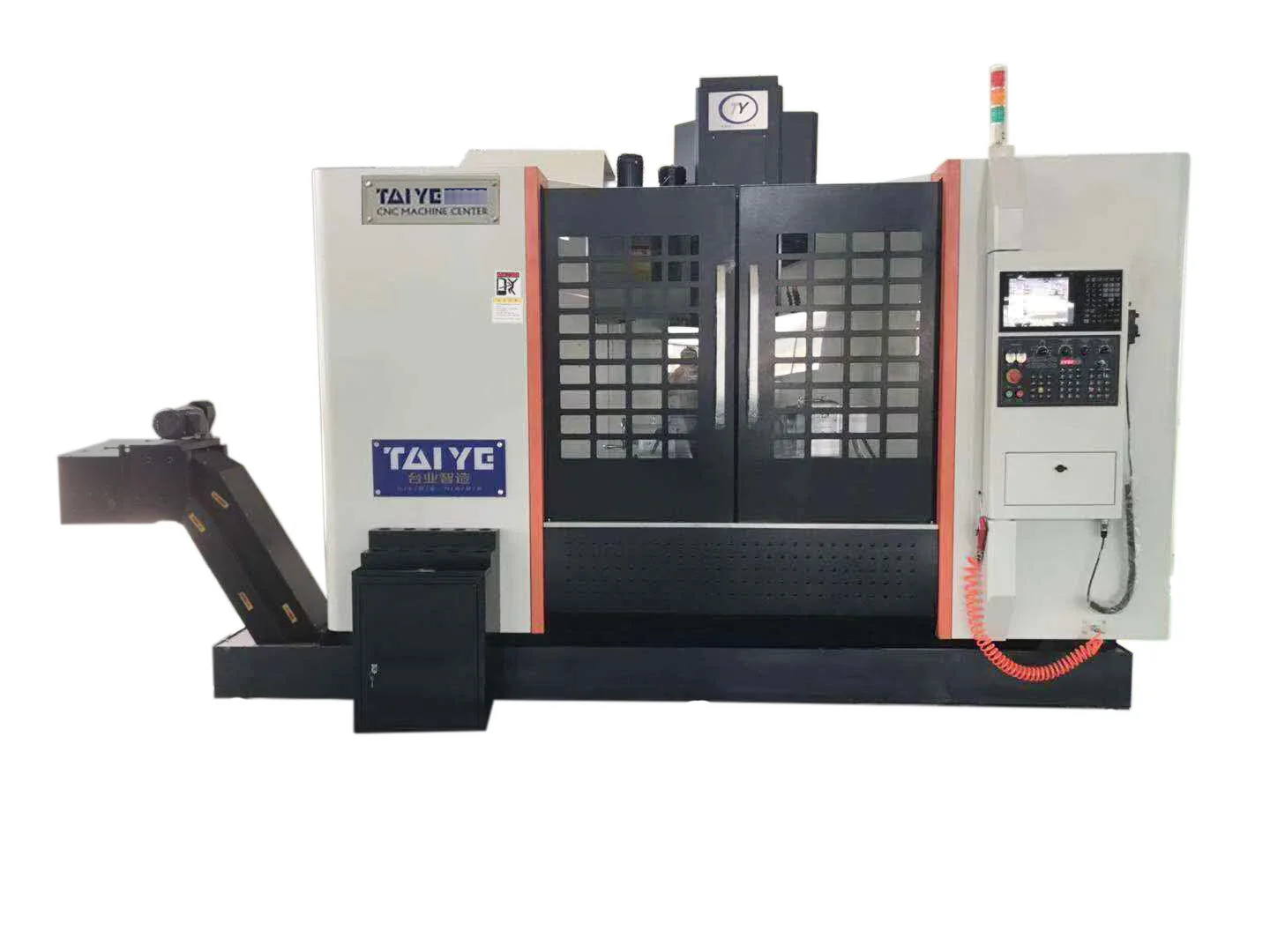

VMC 1370 Type 3 Axis Hard Line Vertical CNC Milling Machine With Fanuc 0i-MF Control
- TAIYE
- HANGZHOU CHINA
- 30 Days After Order Confirm
- 30 Sets Per Month
Taiye CNC machine tool have more than 15 years high performance machine tool manufacture experience, special use in aluminum extrusion mold dies and metal machining industrial.
Taiye machinery company, more than 200 high tech talents and more than 20000 square meter production workshop. We have more than 10 machine tool software patent rights, which is make our machine tool have more competitive advantage
Taiye vertical machining center, hot sale in southeast Asia, north Africa, China mainland. our customer include JMA aluminum company, FengLu aluminum, Xingfa alumium company, etc.
VMC 1370 Type 3 Axis Hard Line Vertical CNC Milling Machine With Fanuc 0i-MF Control
| Table size (MM) | 1400*710 |
| X-axis travel (MM) | 1300 |
| Y-axis travel (MM) | 700 |
| Z-axis travel (MM) | 650 |
| X/Y/Z axis motor (nm) | 22.5 -64 NM |
| Maximum table load (KG) | 1000 |
| T-slot | 5-18-152.5 MM |
| Spindle type | BT50/155 |
| spindle speed | 8000 RPM |
| Spindle power (KW) | 70/15 KW |
| Rapid traverse (X/Y/Z) (m/min) | 10 / 10 /12 |
| Cutting feed (mm/min) | 2-8000 |
| Spindle nose to table (MM) | 150-800 |
| Spindle center to column surface distance rail (MM) | 785 |
| Positioning accuracy (MM) | ±0.005 |
| Repeat accuracy (MM) | ±0.003 |
| Maximum tool diameter (MM) | Φ150 |
| Maximum tool length (MM) | 300 |
| Maximum tool Number | 24T |
| Maximum tool weigh (KG) | 6 |
| Dimensions (MM) | 3300*2850*2250 |
| Machine weight (KG) | 7500 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) world famous brand components parts.
3) Running in a high automatization and intellectualization,no pollution
| 1.The CNC system: Fanuc Oi -Mf | ||||||||
| 2.The high quality castings: Resin sand casting | ||||||||
| 3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||
| 4.The screw: TAIWAN PMI/ HIWIN | ||||||||
| 5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
| 6.The unclamping cylinder: Taiwan Shang product | ||||||||
| 7.Coupling ：Germany R+W | ||||||||
| 8.The bearing: Japan NSK | ||||||||
| 9.Crawler chip conveyor | ||||||||
| 10.Electrical equipment: Schneider | ||||||||
| 11.The Internal protection: Total protection | ||||||||
| 12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
Main Features
Name: Guide Screw
Brand: HIWIN /PMI
Original: Taiwan
Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.
Machine Parts
Name: Linear Guide Rail
Brand: HIWIN
Original: Taiwan
X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.
Main Features
Name: Spindle
Brand: KENTURN / ROYAL
Original: Taiwan
Taiwan KENTURN / ROYAL high precision Spindlewith standard speed up to 8000rmp
Main Features
Name: Bearing
Brand: FAG or NSKGermany FAG or Japanese NSK cylindrical roller bearings are high-rigid and can support high radial loads, and because of the cage, they are more suitable for high speeds than full load designs.
Main Features
Name: ATC
Brand: HDW or OKADA
Original: Taiwan
Taiwan HDW or OKADA disc type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds
Machine Body
Name: Alloy cast iron of the machine body
The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
